Hidden Camera

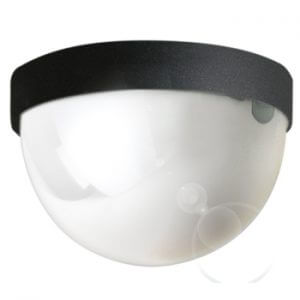

CC-HS3-D1


CONCEALED DOME CAMERA
D1 Series

CC-HS3-D1Features

  • Camera lens covered by the special patented front cover
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • Hi-Resolution:Up to 700TVL
  • Number of effective pixels:NTSC=480K / PAL=570K
  • Adaptive Tone Reproduction (ATR)
  • Min. Illumination of: 0.01Lux

Technical Details

Model Number Concealed Camera  CC-HS3-D1
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux/F1.2
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.0mm(3.6mm;6.0mm;8.0mm;12mm)
Gamma 0.45
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
High light compensation On / off
Back Light Comp On / off
Adaptive Tone Reproduction On / off
Mirror On / off
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -20°C ~ 55°C
Dimension(mm) Main body : ∮110 X 90
Weight(N.W) 235g
Design and specifications are subject to change without notice.



^ Go Top

click here to close

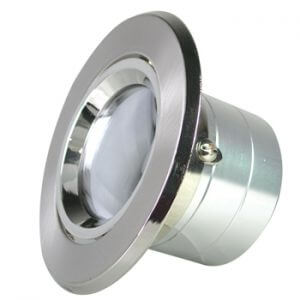

CC-HS3-L1


CONCEALED DOME CAMERA
L1 Series

CC-HS3-L1Features

  • Camera lens covered by the special patented front cover
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • Hi-Resolution:Up to 700TVL
  • Number of effective pixels:NTSC=480K / PAL=570K
  • Adaptive Tone Reproduction (ATR)
  • Min. Illumination of: 0.01Lux

Technical Details

Model Number Concealed Camera  CC-HS3-L1
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux/F1.2
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.0mm(3.6mm;6.0mm;8.0mm;12mm)
Gamma 0.45
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
High light compensation On / off
Back Light Comp On / off
Adaptive Tone Reproduction On / off
Mirror On / off
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -10°C ~ 55°C
Dimension(mm) Main body : ∮87 X 48
Weight(N.W) 235g
Design and specifications are subject to change without notice.



^ Go Top

click here to close


C-HS3-L2


CONCEALED DOME CAMERA
L2 Series

CC-HS3-L2Features

  • Camera lens covered by the special patented front cover
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • Hi-Resolution:Up to 700TVL
  • Number of effective pixels:NTSC=480K / PAL=570K
  • Adaptive Tone Reproduction (ATR)
  • Min. Illumination of: 0.01Lux

Technical Details

Model Number Concealed Camera  CC-HS3-L2
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux/F1.2
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.0mm(3.6mm;6.0mm;8.0mm;12mm)
Gamma 0.45
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
High light compensation On / off
Back Light Comp On / off
Adaptive Tone Reproduction On / off
Mirror On / off
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -10°C ~ 55°C
Dimension(mm) Main body : ∮96 X 115
Weight(N.W) 220g
Design and specifications are subject to change without notice.



^ Go Top

click here to close


CC-HS3-L3


CONCEALED DOME CAMERA
L3 Series

CC-HS3-L3Features

  • Camera lens covered by the special patented front cover
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • Hi-Resolution:Up to 700TVL
  • Number of effective pixels:NTSC=480K / PAL=570K
  • Adaptive Tone Reproduction (ATR)
  • Min. Illumination of: 0.01Lux

Technical Details

Model Number Concealed Camera  CC-HS3-L3
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux/F1.2
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.0mm(3.6mm;6.0mm;8.0mm;12mm)
Gamma 0.45
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
High light compensation On / off
Back Light Comp On / off
Adaptive Tone Reproduction On / off
Mirror On / off
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -10°C ~ 55°C
Dimension(mm) Main body : ∮50 X 49
Weight(N.W) 230g
Design and specifications are subject to change without notice.
