Magic Camera

MAGIC-MS2-03C/HS2-03C


MAGIC CAMERA

Vivid Color In Low Lux, No IR Needed

magicFeatures

  • Star Light Color Camera
  • Built-in 1/3″ CCD High Resolution Color Camera
  • Ture and vivid color under faint star light without IR
  • No overheating and ideal for energy saving
  • Horizontal Resolution 480 TV Lines / 560 TV Lines
  • Unpatrolled color picture performance
  • IP66 weatherproof housing
  • Hidden-cable Bracket , Wall or Ceiling Mount



Technical Details

MODEL NO. MAGIC-MS2-03C MAGIC-HS2-03C
Scanning System NTSC 525 lines 2:1 interlace
PAL 625 lines 2:1 interlace
Scanning Frequency NTSC 15,734Hz(H) , 59.94Hz(V)
PAL 15,625Hz(H) , 50Hz(V)
Effective Pixel NTSC 510(H) x 492(V) 768(H) x 494(V)
PAL 500(H) x 582(V) 752(H) x 582(V)
Electronic Shutter NTSC 1/60-100,000sec.
PAL 1/50-100,000sec.
Image Device 1/3″ SONY Super HAD CCD
Horizontal Resolution 480 TV lines 560 TV lines
Sensitivity 0.01Lux 0.02Lux
Signal to Noise More than 52dB
Gain Control Auto + 18dB
White Balance Auto 2500~9500oK
Sense-UP times Max 32 times
DNR Built-in Digital Noise Reduction Camera
BLC Auto
Gamma Correction 0.45
SYNC  System Internal
Lens/Focus point 4.3mm(Optional 6.0mm, 8.0mm )
Video Output 1.0 Vp-p 75 Ohm
Protection Class IP 66
Power Requirement (±10%) DC12V
Power Consumption (±10%) 80mA
Construction Aluminum with sun-shield weatherproof
Operation Temp. Working: -20~+55oC, Storage: -30~+80oC, Humidity:0~95%RH
Dimension(mm) 170(D)X85(H) x 95(W)
Weight(N.W) Approx. 596g(with backet )





^ Go Top
click here to close

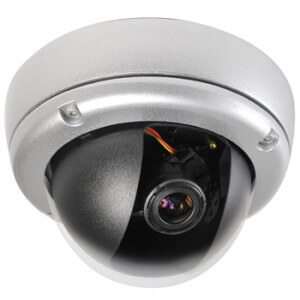

Magic-VDHS3-01


MAGIC CAMERA
Vivid Color in Low Lux without IR

Magic-VDHS3-01Features

  • Star Light Color Camera
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • Built-in 12 white LED
  • Hi-Resolution:700 TVL
  • Number of effective pixels: NTSC=480K / PAL=570K
  • NIP66 weatherproof housing
  • Adaptive Tone Reproduction (ATR)
  • Hidden-cable Bracket , Wall Mount



Technical Details

Model Number Magic-VDHS3-01 Camera
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.3mm(6.0mm;8.0mm)
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
Gamma Correction 0.45
High light compensation yes
Back Light Comp yes
Adaptive Tone Reproduction yes
Mirror yes
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Audio Output (Optional) 2 V p-p / 50 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -20°C ~ 55°C
Construction Aluminum with sun-shield weatherproof
Dimension(mm) 142(Ø) x84(H)mm
Weight(N.W) 560g (with backet )
Design and specifications are subject to change without notice.





^ Go Top
click here to close


Magic-HS3-01

MAGIC CAMERA
Vivid Color in Low Lux without IR

Magic-HS3-01Features

  • Star Light Color Camera
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • True and vivid color under faint star light without IR
  • Hi-Resolution:700 TVL
  • Number of effective pixels: NTSC=480K / PAL=570K
  • NIP66 weatherproof housing
  • Adaptive Tone Reproduction (ATR)
  • No overheating and ideal for energy saving



Technical Details

Model Number

Magic-HS3-01 Camera
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 4.3mm(6.0mm;8.0mm)
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
Gamma Correction 0.45
High light compensation yes
Back Light Comp yes
Adaptive Tone Reproduction yes
Mirror yes
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Audio Output (Optional) 2 V p-p / 50 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -20°C ~ 55°C
Construction Aluminum with sun-shield weatherproof
Dimension(mm) 65(W)X70(H)X112(D)
Weight(N.W) 370 g (with backet )
Design and specifications are subject to change without notice.





^ Go Top
click here to close

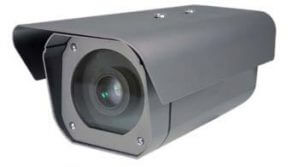

MAGIC-MS2/HS2-02

MAGIC CAMERA
Vivid Color In Low Lux, No IR Needed

Magic-ms2-hs2-02Features

  • Built-in 1/3″ CCD High Resolution Color Camera
  • ENo IR required at night. Clear image under faint start light.
  • No overheat problem. Good for energy conservation and conforms to the environmental protection
  • Horizontal Resolution 560 TV Lines.
  • IP66 weatherproof housing
  • Hidden-cable Bracket



Technical Details

Model Number

MAGIC-MS2-02 MAGIC-HS2-02
Scanning System NTSC 525 lines 2:1 interlace
PAL 625 lines 2:1 interlace
Scanning Frequency NTSC 15,734Hz(H) , 60Hz(V)
PAL 15,625Hz(H) , 50Hz(V)
Effective Pixels NTSC 512(H) x 492(V) 768 (H) x 494(V)
PAL 512(H) x 582(V) 752 (H) x 582(V)
Electronic Shutter NTSC 1/60-100,000sec.
PAL 1/50-100,000sec
Image Device 1/3″ SONY Super HAD CCD
Horizontal Resolution 480 TV lines Enhanced 560 TV lines Enhanced
Sensitivity 0.01Lux 0.02Lux
Signal to Noise More than 48dB
Gain Control Auto + 18dB Max
White Balance Auto ATW 2500-9500 ° K
Sense-UP times Max 32 times
BLC Auto
Gamma Correction 0.45
SYNC System Internal
Lens/Focus point 20mm (Optional 30mm)
Video Output 1.0 Vp-p, 75 Ohm
Protection Class IP 66
Power Requirement (±10%) DC12V
Power Consumption (±10%) 80mA
Construction Aluminum with sunshield weatherproof
Operation Temp. Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C , Humidity:0~95%RH
Dimensions ( mm ) 95(W) x 95(H) x 250(L)
Weight ( N.W) Approx. 1.9kg (with bracket)
Design and specifications are subject to change without notice.



^ Go Top
click here to close

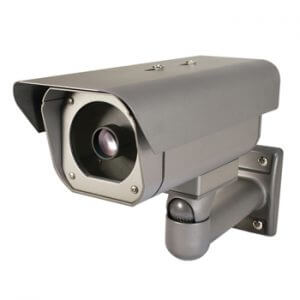

Magic-HS3-02

MAGIC CAMERA
Vivid Color in Low Lux without IR

Magic-HS3-02Features

  • Star Light Color Camera
  • Effio-E Digital Signal Processor (DSP) chip-set for image control
  • True and vivid color under faint star light without IR
  • No overheating and ideal for energy saving
  • Hi-Resolution:700 TVL
  • Number of effective pixels: NTSC=480K / PAL=570K
  • NIP66 weatherproof housing
  • Adaptive Tone Reproduction (ATR)
  • Hidden-cable Bracket , Wall Mount

Technical Details

Model Number

Magic-HS3-02 Camera
Image Device 1/3″ Color Sony Hi-Resolution CCD
Picture Elements NTSC:976×494, PAL:976×582
Resolution COLOR: 650TVL  B/W: 700TVL
Min. Illumination 0.01Lux
S/N Ratio 52dB (AGC OFF)
Electronic Shutter NTSC: 1/60 ~1/100000  PAL:1/50 ~1/100000
Lens Furnished 20mm(6.0mm;8.0mm)
Gain Control Auto
White Balance ATW
Day & Night Auto
Digital Noise Reduction 2D Noise Reduction
Gamma Correction 0.45
High light compensation yes
Back Light Comp yes
Adaptive Tone Reproduction yes
Mirror yes
Sync. System Internal
Video Output 1.0Vpp/ 75 Ohms
Audio Output (Optional) 2 V p-p / 50 Ohms
Power Supply DC12V±10%
Power Consumption Max 80mA ±10% @ DC12V
Operating Temp -20°C ~ 55°C
Construction Aluminum with sun-shield weatherproof
Dimension(mm) 95(W)X95(H)X250(D)
Weight(N.W) 1.9Kg (with backet )
Design and specifications are subject to change without notice.
