RFID Time Attendance System

S200

S200

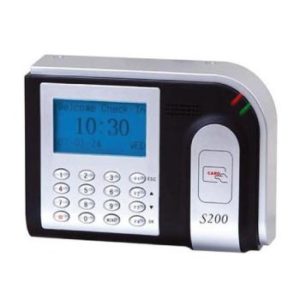

Introduction

s200 RFID time attendance systemThe S200 is a proximity RFID time attendance System powered by IINA Software. This Time attendance System is based on ZEM500 platform. RFID time attendance System offers unparalleled performance using the state of the art RFID proximity reader and embedded Linux platform. The world famous Linux system ensures stable and reliable network transmission. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds..

Features

  • High-efficiency proximity card identification
  • long distance card read
  • Standard 125kHz Proximity Card Reader, optional HID Reader and Mifare Reader
  • Built-in Serial and Ethernet ports
  • Built in bell scheduling
  • Multi Language Support
  • Audio-Visual indications for acceptance and rejection of valid/invalid fingers
  • Function Keys to select the IN or OUT status of the punches
  • Voice Prompt Function
  • Real-time 1-touch data export 3rd party hosted & non-hosted applications
  • SDK available for OEM customers and software developers

Technical Details

Card Capacity

30,000

Transaction Capacity

100,000

Hardware Platform

ZEM500

Operation System

Linux

Communication

RS232/485, TCP/IP

Card support

ID Card(Standard), optional HID/Mifare Card

Standard Functions

Work code, SMS, DLST, Automatic Status Switch, Scheduled-bell, Self-Service Query, 5 digit user ID

Optional Functions

ADMS, Print, Soap, Web-server, USB-Host, 9 digit user ID

Display

Black & White LCD

Power Supply

5V DC 2A

Operating Temperature

0 ℃- 45 ℃

Operating Humidity

20% – 80%

Dimension(W×H×D)

184.3×130×48 mm





^ Go Top

click here to close



s500

s500

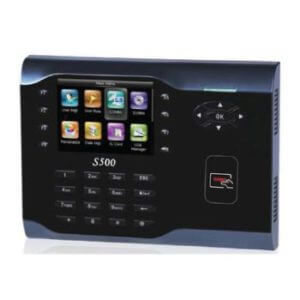

s500Introduction

S500 is a multimedia RFID Time Attendance System terminal developed by IINA Software, it is based on self-research and developed multimedia ZEM510 platform —the leading figure in Proximity field. This RFID Time Attendance System is the first multimedia proximity attendance terminal in the world that adopts 3.5 inch TFT, 65000 true color, and 320*240 resolutions. Our high technology enables you to enjoy visual image.
It supports T9 input method, which could input English letters by keyboard, edit user name, short message, and intelligent operation. It communicates with computer through TCP/IP and USB. The world famous Linux system ensures stable and reliable network transmission. S500 has the only legally authorized MAC address and it can be used in complicated internet environment. Supporting U-disk function, users can upload self-defined background pictures. Besides, humanitarian interface design is adopted by the device. Whole graphical interface and facilitates navigation enable users and devices to interact directly and friendly.

Features

  • Color TFT screen with GUI Interface for ease of use
  • High-efficiency proximity card identification
  • Long distance card read
  • Standard 125kHz Proximity Card Reader, optional HID, Mifare and iClass Reader
  • Built-in Serial and Ethernet ports
  • Built in bell scheduling
  • Multi Language Support
  • 8 user-defined function keys
  • Built-in USB port allows for manual data transfer when network isn’t available
  • Audio-Visual indications for acceptance and rejection of valid/invalid Cards
  • Real-time 1-touch data export 3rd party hosted & non-hosted applications
  • SDK available for OEM customers and software developers

Technical Details

Card Capacity

10,000

Transaction Storage

50,000

Hardware Platform

ZEM510

Operating System

Linux

Communications

TCP/IP, USB Host, RS232/485

Card Support

 ID card, Mifare card, Wi-Fi, GPRS

Standard Functions

Work code, SMS, Scheduled-bell, Self-Service Query, T9 input

Optional Functions

none

Display

3.5 inches TFT Screen

Power Supply

12V DC 1.5A



^ Go Top

click here to close



S880

S880

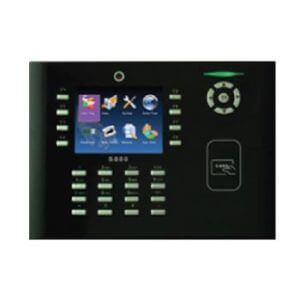

s880Introduction

S880 is a multimedia proximity time attendance and access control terminal developed by IINA Software. it is based on self-research and developed multimedia ZEM510 platform -the leading figure in Proximity field. The 3.5” TFT can display more information vividly, including user photo and verification result etc. It supports T9 input method, which could input English letters by keyboard, edit user name, short message, and intelligent operation. The world famous Linux system ensures stable and reliable network transmission. S880 has the only legally authorized MAC address and it can be used in complicated internet environment. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. The S880 has access control connectivity for Wiegand-in, Wiegand-out, Door lock connection, Alarm, Bell, Remote to Exit switch.

Features

  • Color TFT screen with GUI Interface for ease of use
  • High-efficiency proximity card identification
  • Long distance card read
  • Standard 125kHz Proximity Card Reader, optional HID, Mifare and iClass Reader
  • Built-in Serial and Ethernet ports
  • Built in bell scheduling
  • Multi Language Support
  • 8 user-defined function keys
  • Relay contacts for alarm, bell, lock, exit, switch, etc
  • Built-in USB port allows for manual data transfer when network isn’t available
  • Embedded webserver enables user to inquire data at local or remote via browser
  • SDK available for OEM customers and software developers

Technical Details

Card Capacity

10000

Transaction Storage

50000

Hardware Platform

ZEM510

Operating System

Linux

Communications

TCP/IP, USB Host, RS232/485, Access control Interface for

Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell, Anti-passback

Card Support

ID card, Mifare card, Wi-Fi, GPRS

Standard Functions

Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, Camera, Web-server

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, Door Bell, Anti-passback

Wiegand Signal

Input & Output
